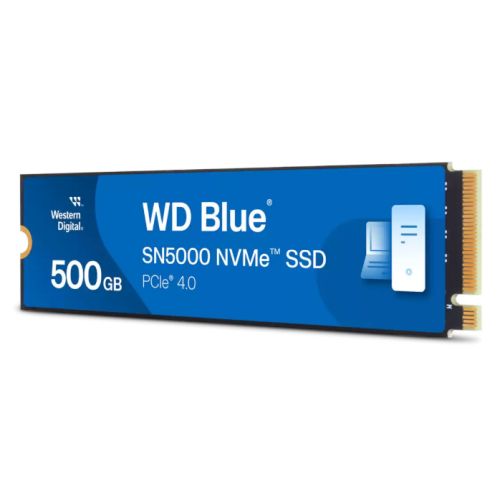

WD 500GB Blue SN5000 M.2 NVMe Gen4 SSD, M.2 2280, PCIe4, 3D NAND TLC, R/W 5000/4000 MB/s, 460K/770K IOPS

Description

Description

Specification

• Series: WD Blue SN5000
• #Hide#Capacity Range: 480 – 512 GB
• Capacity: 500 GB
• Form Factor: M.2 2280
• #Hide#Interface Type: PCI Express
• Interface: PCIe 4.0 x4
• Read: Up to 5000 MB/s
• Write: Up to 4000 MB/s
• Max Random 4K R/W: 460K / 770K IOPS
• Power Consumption: Average Active Power: 75mW
  Sleep (PS5): 5mW
  Max Average Power: 6.3mW
• Weight/Dimensions: 5.7g
  80 x 22 x 2.38 mm
• Operating Temperatures: 0°C to 85°C
• Storage Temperatures: -40°C to 85°C
• Shock Resistance: “1,500 G @ 0.5 msec half sine”
• Vibration Operating: “5.0 gRMS, 10–2000 Hz, 3 axes”
• Vibration Non-operating: “4.9 gRMS, 7–800 Hz, 3 axes”
• MTBF: 1.75 Million Hours
• Total Bytes Written (TBW): 300 TBW
• Additional Features: WD nCache 4.0 for fast file copies
  Acronis True Image for WD Data Migration Software
• Package Type: Retail
• Package Weight: 0.0500 kg
• Warranty: 5 Years or if the drive exceeds Total Bytes Written (see above)
