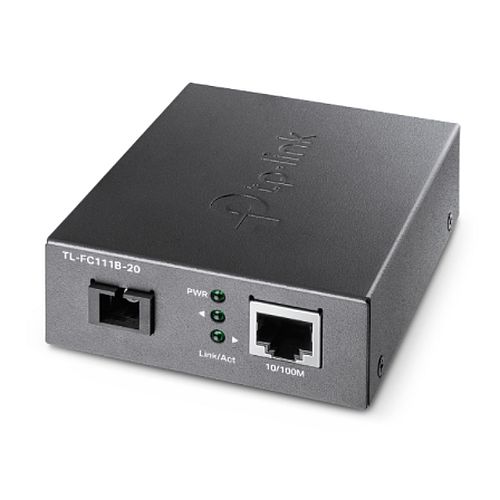

TP-LINK (TL-FC111B-20) 10/100 Mbps WDM Media Converter, up to 20km, 802.3u 10/100Base-TX, 100Base-FX, Single-Mode, Half-Duplex/Full-Duplex

Description

Description

Specification

• Type: WDM Media Converter
• Enclosure Type: External
• Basic Functions: “Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  Adopts WDM technology, transmitting and receiving data on one single fiber
  Extends fiber distance up to 20km”
• Ports: 1 x 100 Mbps SC Fiber Port
  1 x 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
• Standards and Protocols: “IEEE802.3, IEEE802.3i, IEEE802.3u”
• Wave Length: 1310nm Tx/1550nm Rx
• Network Media 100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (<100 m)
• Transmission Distance: 20km
• LED Indicators: “PWR, Link/Act”
• Dimensions (WxDxH): 94.5 x 73 x 27 mm
• Power Supply: External Power Adapter: 5 V/0.6 A
• Environment: Operating Temperature: 0°C~50°C (32°F~122°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Type: Retail
• Package Weight: 0.3500 kg
• Warranty: 2 Years
