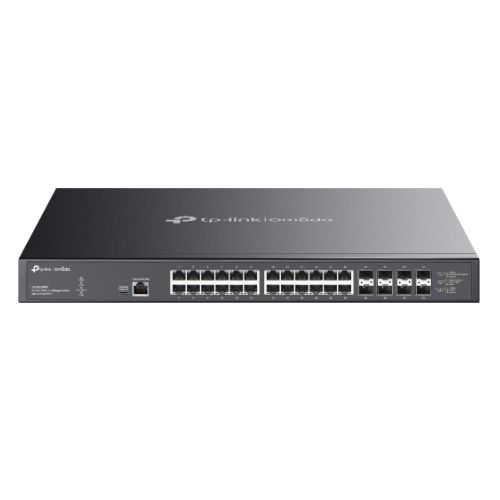

TP-LINK (SX3832MPP) Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++, 8x 1/10 Gbps SFP+ Slots, Rackmountable

Description

Description

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 32
• Max RJ45 Transfer Rate: 10 Gbps
• #Hide#Max SFP Transfer Rate: 10G SFP
• Interface(s): 24 x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports
  8 x 1/10G SFP+ Slots‡
  1 x RJ45 Console Port
  1 x USB Type C Console Port
• PoE Ports (RJ45): “Standard: 802.3bt/at/af compliant
  PoE++ Ports (802.3bt/at/af PoE): 24 Ports, up to 90 W per port**
  Power Budget: 770 W*

  *PoE budget calculations are based on laboratory testing
  **SX3832MPP is incompatible with Passive PoE and other non-standard PoE devices
  “

• Switching Capacity: 640 Gbps
• Power Supply: “100-240 V AC~50/60 Hz

  Max Power Consumption:
  1,010.2 W (110V/60Hz with 770 W PD connected)
  953.7 W (220V/50Hz with 770 W PD connected)”

• Dimensions: (WxDxH) 440 x 330 x 44 mm
• Mac Address Table: 32 K
• Packet Forwarding Rate: 240 Mpps
• Jumbo Frame: 9 KB
• Additional Features: Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule

  ISP Features:
  L2PT (Layer 2 Protocol Tunneling)
  Device Link Detect Protocol (DLDP)
  PPPoE ID Insertion
  ERPS
  802.3ah Ethernet Link OAM
  DDM

• Quality of Service: “8 priority queues
  802.1p CoS/DSCP priority
  Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
  Bandwidth Control: Port/Flow-based Rating Limiting
  Smoother Performance
  Action for Flows: QoS remark (802.1P Remark, DSCP Remark)”
• Layer Features: “L2 and L2+:
  128 IP Interfaces: Support IPv4/IPv6 Interface
  Static Routing: 48 IPv4/IPv6 Static Routes
  Static ARP: 128 static entries
  510 ARP Entries
  Proxy ARP
  Gratuitous ARP
  DHCP Server
  DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
  DHCP L2 Relay
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  802.3x Flow Control
  Mirroring

  “

• .: “L2 Multicast:
  Supports 4,000 (IPv4, IPv6) IGMP groups
  IGMP Snooping
  IGMP Authentication
  Multicast VLAN Registration (MVR)
  MLD Snooping
  Multicast Filtering: 256 profiles and 16 entries per profile
  “
• VLAN: “VLAN Group: Max 4K VLAN Groups
  802.1q Tagged VLAN
  MAC VLAN: 256 Entries
  Protocol VLAN: Protocol Template 16, Protocol VLAN 12
  Private VLAN
  GVRP
  VLAN VPN: VLAN Mapping, VLAN Replace
  Voice VLAN”
• Access Control: “Time-based ACL
  MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
  IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
  Combined ACL
  Packet Content ACL
  IPv6 ACL
  Policy: Mirroring, Redirect, Rate Limit, QoS Remark
  ACL applies to Port/VLAN”
• Security: IP-MAC-Port Binding
  IPv6-MAC-Port Binding
  DoS Defend
  DHCP Filter
  Static/Dynamic Port Security: Up to 64 MAC addresses per port
  Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
  802.1X
  AAA (including TACACS+)
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  IP/Port/MAC-based access control
• Management: “Require Omada Controllers:
  Omada App
  Centralized Management
  Cloud Access
  Zero-Touch Provisioning

  Management Features:
  Web-based GUI
  Command Line Interface (CLI) through console port, telnet
  SNMPv1/v2c/v3
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP AutoInstall
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  Password Recovery
  SNTP
  System Log”

• Environment: Operating Temperature: -5–45°C
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: SX3832MPP Switch
  Power Cord
  Console Cable
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 7.0900 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
