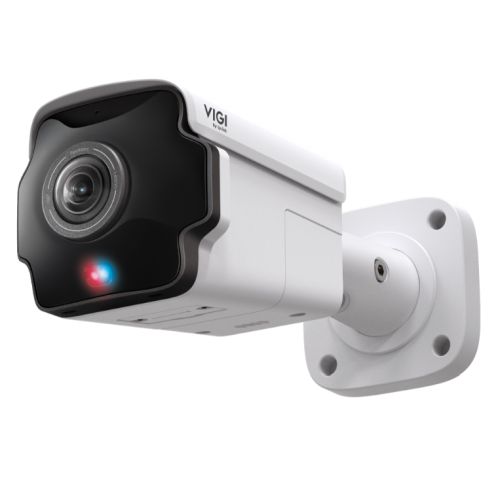

TP-LINK (InSight S385PI) VIGI 8MP Outdoor IR Panoramic Bullet Network Camera, IP67, PoE, 180° Panorama, AI Detection/Classification, Red-Blue Warning Lights

Description

Description

Specification

• #Hide#Form Factor: Bullet
• Suitable for Outdoor: Yes
• Wired/Wireless: Wired
• Interface(s): “1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
  DC Power Port
  Memory Card Slot (MicroSD Card up to 512GB)”
• Image Sensor: 1/2.7” Progressive Scan CMOS
• Resolution: “Main Stream:
  3840×2160,2560×1440,2304×1296,2048×1280,1920×1080,1280×720

  Sub-Stream:
  848×480,704×576, 640×480, 640×360,352×288, 320×240″

• Frame Rate: “Main Stream:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  Sub-Stream:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps”

• Video Compression: Main Stream:
  H.265+/H.265/H.264+/H.264

  Sub-Stream:
  H.265/H.264

• Lens: 1.65mm Fixed Focal Lens
  Lens Mount: M12
  Aperture: F2.0

  DORI Distance:
  Detect: 144.36 ft (44 m)
  Observe: 60.15 ft (18.33 m)
  Recognize: 28.87 ft (8.8 m)
  Identify: 14.44 ft (4.4 m)

• Viewing Angle: Horizontal FOV: 180°
  Vertical FOV: 86°
  Diagonal FOV: 180°
• Pan/Tilt/Rotation: Pan: 0° to 360°
  Tilt: 0° to 90°
  Rotation: 0° to 360°
• Day/Night Mechanism: IR Cut Filter
  Day/Night Switch: Unified/ Scheduled/ Auto
• IR Working Distance: IR LED Quantity: 4
  Range: 20m
  Wavelength: 850nm
  Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
• Minimum Illumination: “0.005 Lux; 0 Lux with IR Light”
• Video Streaming: Main Stream
  Sub-Stream
• Image Settings: Mirror
  Brightness
  Contrast
  Saturation
  Sharpness
  Exposure
  WDR
  White Balance
  Prevent Overexposure to Infrared Light
  HLC Adjustable by Client Software
• Audio Features: “Two-Way Audio
  Audio Input: Built-in Microphone, Audio In Interface
  Audio Output: Built-in Speaker, Audio Out Interface
  Audio Compression: Yes
  Audio Sampling Rate: 8 KHz
  Environment Noise Filtering: Yes
  Audio Bit Rate: 64 Kbps(G.711 alaw)”
• Alarm & Event Management: “Smart Event Detection:
  Intrusion, Line-Crossing, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change

  Basic Event:
  Motion Detection (Enhanced with Human & Vehicle Classification)
  Video Tampering Detection
  Exception (Illegal Login)
  Alarm Input Device

  “

• .: Linkage Method:
  Memory Card Video Recording
  Upload to FTP Server
  Alarm Output Device
  Push Notifications
  Send to Alarm Server
  Active Defence-Sound & Light Alarm
  Email Alarm
• Network: “Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP

  ONVIF: Yes

  API: Open Network Video Interface (Profile S/T/G)

  Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

  Cloud: Yes”

• Wireless Features: –
• Security: “Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication”
• Management: “VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client”
• Power Supply: “12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug
  PoE: 802.3at, Class 4, Max. 21W”
• Additional Features: 180° Panorama View with Huge Vision
  Red-Blue Warning Lights with Stronger Deterrence
  IK10 Vandal Proof
• Weight/Dimensions: 1.01 kg
  (LxWxH) 266 x 100 x 101 mm
• Environment: IP67 Waterproof
  Operating Temperature: -30–60 °C
  Storage Temperature: -40–60 °C
  Operating Humidity: 95% or Less (Non-Condensing)
  Storage Humidity: 95% or Less (Non-Condensing)
• Package Contents: VIGI Network Camera
  Quick Start Guide
  Waterproof Cable Attachments
  Mounting Accessories
• Package Weight: 1.3800 kg
• Warranty: 5 Years
• #Hide#Resolution: 8MP
