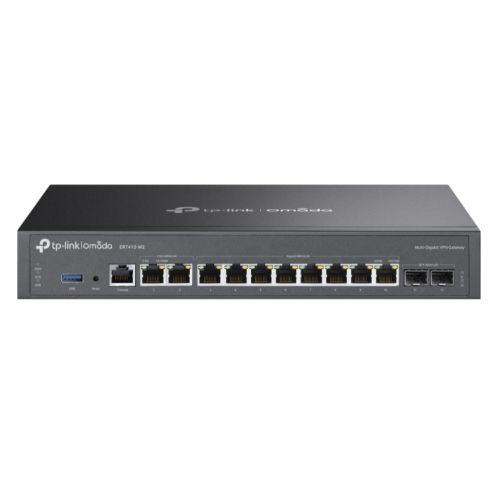

TP-LINK (ER7412-M2) Omada Multi-Gigabit VPN Router, Quad-Core CPU, 2x 2.5G WAN/LAN, 2x GB SFP, 8x GB RJ45, USB 3.0

Description

Description

Specification

• Type: VPN Router
• Connectivity: Wired
• Max Single Band Wi-Fi Rate: None
• Max Wired Transfer Rate: 2.5 Gbps
• Interface(s): “1 x 2.5G RJ45 WAN/LAN Port
  1 x 2.5G RJ45 WAN/LAN Port
  2 x Gigabit SFP WAN/LAN Ports
  8 x Gigabit RJ45 WAN/LAN Ports
  1 x RJ45 Console Port
  1 x USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)”
• IEEE Standards & Protocols: “IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q

  TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP”

• Button(s): Reset Button
• Power Supply: “100–240 VAC, 50/60 Hz
  Max Power Consumption: 18.5W (With USB 3.0 connected)”
• Dimensions: (WxDxH) 294 x 180 x 44 mm
• Security: Access Control:
  Source/Destination IP-Based ACL
  Stateful ACL
  IPv4/IPv6 ACL
  Location Based ACL

  Filtering:
  WEB Group Filtering
  URL Filtering
  Web Security

  ARP Inspection:
  Sending GARP Packets
  ARP Scanning
  IP-MAC Binding

  Attack Defense:
  TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN

• DHCP: DHCP Server
  DHCPv6 PD Server (only in Standalone Mode)
  DHCP Options Customization
  DHCP Address Reservation
  Multi-IP Interfaces
  Multi-Net DHCP
• Port/NAT Forwarding: “66 Byte Packet forwarding rate: 1833 Mbps / 1835 Mbps
  1,518 Byte Packet forwarding rate: 2461 Mbps / 2461 Mbps”
• VPN Support: “GRE:
  Only in Standalone Mode

  SSL VPN:
  80 Tunnels

  IPsec VPN:
  150 IPSec VPN Tunnels
  LAN-to-LAN, Client-to-LAN
  Main, Aggressive Negotiation Mode
  DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  IPsec Failover
  IKE v1/v2
  MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
  NAT Traversal (NAT-T)
  Dead Peer Detection (DPD)
  Perfect Forward Secrecy (PFS)

  “

• .: PPTP VPN:
  PPTP VPN Server
  PPTP VPN Client (15)
  150 Tunnels
  PPTP with MPPE Encryption

  L2TP VPN:
  L2TP VPN Server
  L2TP VPN Client (15)
  150 Tunnels
  L2TP over IPSec

  OpenVPN:
  OpenVPN Server
  OpenVPN Client (11)
  121 OpenVPN Tunnels
  “”Certificate + Account”” Mode
  Full Mode

  WireGuard VPN:
  20 Tunnels

• Management: “Omada App / Centralized Management / Cloud Access:
  – Requires OC300, OC200, Omada Cloud or Software Controller

  Maintenance:
  Web Management Interface
  Remote Management
  Export & Import Configuration
  SNMP v1/v2c/v3
  Diagnostics (Ping & Traceroute)§
  NTP Synchronize
  Port Mirroring
  CLI (only in Standalone Mode)
  Syslog Support

  “

• .: ” Service:
  Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

  Zero-Touch Provisioning:
  Requires Omada Cloud-Based Controller

  Management Features:
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule”

• USB Application: “Supports USB storage, and LTE backup with LTE dongle”
• Additional Features: Mounting: Desktop/Rackmountable
  Quad-core 2.0GHz CPU
  Flash: 128MB NAND
  DRAM: 1 GB DDR4
  Protection: 4 kV surge protection
  Enclosure: Steel

  See Overview/Manufacturers website for more details

• Environment: “Operating Temperature: 0–45°C (32–113°F);
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% non-condensing”
• Package Contents: ER7412-M2
  Power Cord
  Quick Installation Guide
  Rackmount Kit
  RJ45 Console Cord
• Package Type: Retail
• Package Weight: 1.8900 kg
• Warranty: Limited Lifetime
