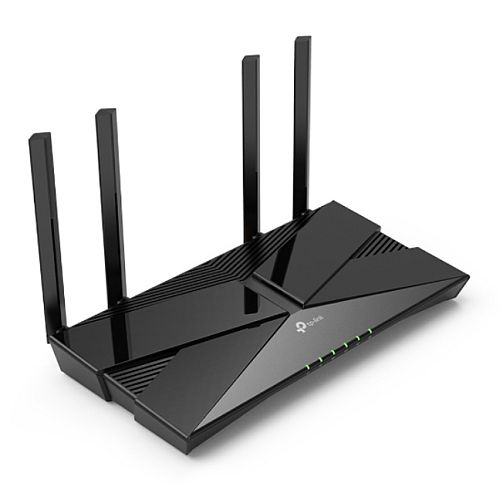

TP-LINK Aginet (EX220) AX1800 Dual Band Wi-Fi 6 Router, OFDMA, EasyMesh, Remote Management, 1 WAN, 4 LAN

Description

Description

Specification

• Type: Cable Router
• Connectivity: Wireless
• Wi-Fi Rating: AX1800
• Max Single Band Wi-Fi Rate: 1201 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Bands: Dual Band
• Signal Rate: 5 GHz: 1201 Mbps
  2.4 GHz: 574 Mbps
• Interface(s): 1 x 10/100/1000 Mbps RJ45 WAN
  4 x 10/100/1000 Mbps RJ45 LAN Ports
• Standards: “Wireless Standards:
  IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/g/b 2.4 GHz

  Protocols:
  IPv4, IPv6″

• Frequency: 2.4 GHz and 5 GHz
• Button(s): “Power On/Off Button, Reset Button, WPS/Wi-Fi Button”
• Power Supply: External Power Supply: 12V/1A
• Antenna(s): Four External antennas
  2 x 4dBi for 2.4 GHz and 2 x 5dBi for 5 GHz
• Dimensions: 260.2 x 135.0 x 41.6 mm
• Wireless Functions: “Enable/Disable Wireless Radio, WMM, Wireless Statistics”
• Security: “Wireless Security:
  WPA/WPA2/WPA3 encryptions

  Access Control:
  Parental Controls, White List, Black List

  Firewall Security:
  DoS, SPI Firewall, IP and MAC Address Binding”

• DHCP: “Server, DHCP Client List, Address Reservation”
• Port/NAT Forwarding: “Virtual Server, Port Triggering, UPnP, DMZ”
• VPN Support: “VPN Pass-Through: IPSec, PPTP, L2TP
  VPN Server: PPTP, OpenVPN, IPSec”
• Management: “Access Control, Remote Management, TR-069(TR-098/TR-181), TR-111, TR-143”
• Dynamic DNS: “DynDns, NO-IP”
• USB Application: –
• Additional Features: “Muti-SSID, TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness, Guest Network”
• Environment: Operating Temperature: 0°C–40°C (32°F –104°F)
  Storage Temperature: -40°C–60°C (-40°F –140°F)
  Operating Humidity: 10%–90% non-condensing
  Storage Humidity: 5%–90% non-condensing
• Package Contents: AX1800 Wi-Fi 6 Router EX220
  Power Adapter
  RJ45 Ethernet Cable
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.9300 kg
• Warranty: 3 Years
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
• #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
