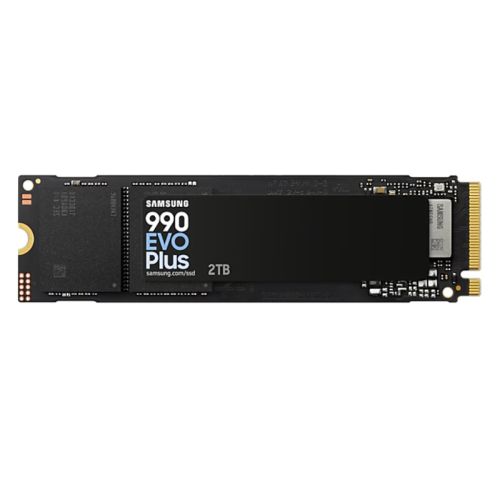

Samsung 2TB 990 EVO PLUS M.2 NVMe Gen4/5 SSD, M.2 2280, PCIe 4.0/5.0 x2, V-NAND, R/W 7250/6300 MB/s, 1000K/1350K IOPS

Description

Description

Specification

• Series: Samsung 990 EVO PLUS
• #Hide#Capacity Range: 1920 – 2000 GB
• Capacity: 2 TB
• Form Factor: M.2 2280
• #Hide#Interface Type: PCI Express
• Interface: PCIe 4.0 x4 / 5.0 x2
• Controller: Samsung in-house Controller
• Read: Up to 7250 MB/s
• Write: Up to 6300 MB/s
• Max Random 4K R/W: 1000K / 1350K IOPS
• Power Consumption: Average: Read 4.6 W / Write 4.2 W
  Idle: Typical 60 mW
  Device Sleep: Typical 5mW
• Weight/Dimensions: 9g
  80.15 x 22.15 x 2.38 mm
• Operating Temperatures: 0 – 70°C
• Shock Resistance: “1,500 G & 0.5 ms (Half sine)”
• Vibration Non-operating: “20~2,000Hz, 20G”
• MTBF: 1.5 Million Hours
• Total Bytes Written (TBW): 1200 TBW
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.0760 kg
• Warranty: 5 Years or if the drive exceeds Total Bytes Written (see above)
