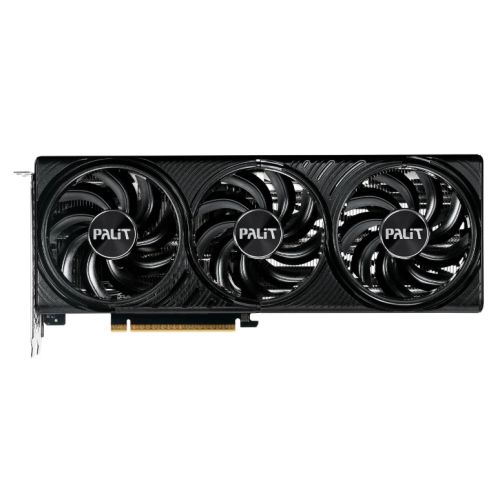

Palit RTX5060 Ti Infinity 3 OC, PCIe5, 16GB DDR7, HDMI, 3 DP, 2662MHz Clock, Overclocked, Compact SFF-Ready

Description

Description

Specification

• Chipset Manufacturer: Nvidia
• Interface: PCI Express 5.0
• Graphics Chipset: Nvidia RTX 5060 Ti
• Memory Size: 16GB
• Memory Type: DDR7
• Memory Interface: 128-bit
• Engine Clock: Core Clock: 2407 MHz
  Boost Clock: 2662 MHz
• Memory Clock: 28 Gbps
• CUDA Cores / Stream Processors: 4608 CUDA Cores
• Outputs: 1 x HDMI 2.1b
  3 x DisplayPort 2.1b
• HDCP Support: Yes
• Resolution: “DisplayPort 2.1b with UHBR20: up to 4K 480Hz or 8K 165Hz with DSC
  HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR”
• DirectX Support: DirectX 12 Ultimate
• Max Display Support: 4
• Cooling: Triple Fan
  0-dB Tech
  Composite Heat Pipe
• PSU Requirements: 600W or greater recommended
• Connectors Required: 1 x 8-pin power
• Software: ThunderMaster
• Additional Features: “Dedicated Ray Tracing Cores
  Dedicated Tensor Cores
  NVIDIA DLSS
  Game Ready and NVIDIA Studio Driver
  NVIDIA APP
  NVIDIA Broadcast
  NVIDIA G-SYNC
  Vulkan 1.4, OpenGL 4.6
  HDCP 2.3″
• Dimensions: 291.9 x 116.6 x 41.3 mm
• Slot Size: 2 Slot
• Package Type: Retail
• #Hide#HDMI: Yes (HDMI)
• #Hide#DisplayPort: Yes (DisplayPort)
• Package Weight: 2.2000 kg
• Warranty: 2 Years
