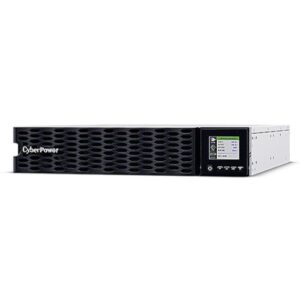

CyberPower 6000VA Smart App Double Conversion Online High Density Rack UPS, 6000W, Colour LCD, Hardwire Terminal Block , ECO Mode

Description

Description

Specification

• Type: External UPS
• UPS Topology: Online Double Conversion
• Maximum Capacity: 6000VA / 6000W
• #Hide#Capacity (VA): 6000V A
• #Hide#Capacity (Watts): 6000 W
• Battery Type: Sealed Lead-acid
• Typical Protection: Surge Suppression: 2430 Joules
  EMI/RFI Filtration
• Transfer Time: 0ms
• Battery Protection: “Overload Protection:
  Internal Current Limiting, Circuit Breaker

  Overload Protection (Line Mode) :
  105~125% Load for 1 min, 125~150% Load for 10 sec

  Overload Protection (Battery Mode) :
  105~130% Load for 10 sec, 130~150% Load for 2 sec

  Overload Protection (Bypass Mode) :
  Circuit Breaker
  “

• Input Voltage: Nominal Input Voltage: 200 ~ 240 Vac
  Input Voltage Range: 200 ~ 240 Vac
• Output Voltage: Configurable
• Recharge Time: 4 Hours
• Runtime: at Half Load: 6.2 minutes
  at Full Load: 2.4 minutes
• Interfaces: 4 x IEC C13
  2 x IEC C19
  1 x Hardwire Terminal Block
  Output Circuit Breaker
  AC Inlet
  BM/ENV Port
  Serial Port
  USB Port
  SNMP/HTTP Network Slot
  Extended Battery Module Connector
  EPO Port
• Visual Indicators: “Rotatable Colour LCD Panel Information:
  Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

  LCD Setting & Control:
  Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language

  LED Indicators:
  Power On
  “

• Audible Indicators: “Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery”
• Environment: “Operating Temperature: 32 ~ 104°F
  Operating Temperature: 0 ~ 40 °C
  Operating Relative Humidity (Non-condensing): 0 ~ 95 %
  Operating Elevation: 0-9,843 feet (0-3,000 meters)
  Storage Temperature: 23 ~ 113 °F
  Storage Temperature: -5 ~ 45 °C
  Storage Relative Humidity (Non-condensing): 10 ~ 95%
  Storage Elevation: 0-14,764 feet (0-4,500 meters)
  Online Thermal Dissipation: 1613 BTU/hr
  Audible Noise at 1.0M from Surface of Unit: 43~66 dBA (0~100 % load)”
• Dimensions: (WxHxD) 433 x 86.5 x 720 mm
• Weight: 42 kg
• Software: PowerPanel Business (Recommended)
• Additional Features: See Overview
• Accessories: OL6KERTHD UPS
  Rackmount Rail
  Rackmount Ears
  Terminal Cover
  Screw Kit
  USB Cable
  Serial Cable
  Users Manual
• Package Type: Retail
• Package Weight: 52.1000 kg
• Warranty: 2 Years – direct with CyberPower
