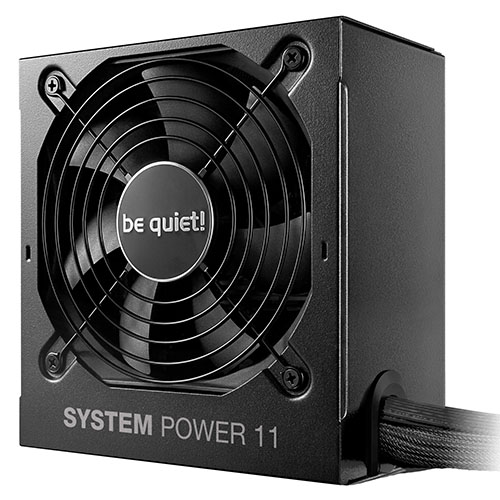

Be Quiet! 750W System Power 11 PSU, 80+ Bronze, Fully Wired, Temp-Controlled Fan, ATX 3.1, PCIe 5.1

Description

Description

Specification

• Form Factor: ATX
• Series: Be Quiet! System Power 11
• Wattage: 750 W
• Modular: Fully Wired
• Compatibility: ATX 3.1
  PCIe 5.1
  EPS 12V v2.92
• #Hide#Wattage Range: 700 – 760W
• Connectors: 1 x ATX-Motherboard (20+4-pin)
  1 x P4+4 (CPU)
  1 x P8 (CPU)
  1 x 12V-2×6 cables
  3 x PCI-e 6+2-pin (GPU)
  6 x SATA
  1 x PATA
• Rail Design: Single Strong 12V-rail
• AC Input: 200-240 Vac
• Fan Type: Temperature-controlled 120mm Quality Fan
• Fan Bearing: Rifle Bearing
• Noise: 10% load: 10.5 dB(A)
  20% load: 10.5 dB(A)
  50% load: 12.3 dB(A)
  100% load: 33.4 dB(A)
• Max Certification: Bronze
• Efficiency: “80+ Bronze
  230V, 2% load: 65.5%
  230V, 10% load: 85.0%
  230V, 20% load: 89.1%
  230V, 50% load: 90.0%
  230V, 100% load: 86.6%”
• MTBF: “100,000 hours”
• Protection: OTP (over temperature protection)
  OCP (over current protection)
  OPP (over power protection)
  SCP (short circuit protection)
  OVP (over Voltage protection)
  UVP (under Voltage protection)
  SIP (Surge & Inrush protection)
• Additional Features: See Overview
• Package Contents: Power Supply
  Screws
  Cable Ties
  User Manual
• Weight/Dimensions: 2.04 kg
  (LxWxH) 86 x 150 x 140 mm
• Package Weight: 2.4000 kg
• Warranty: 5 Years
• #Hide#ATX 3.1/3.0: ATX 3.1
