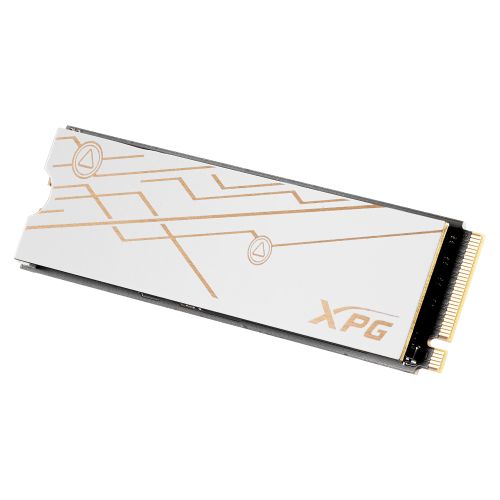

ADATA 1TB XPG MARS 980 BLADE Gen5 M.2 NVMe Laptop-Ready SSD, M.2 2280, PCIe 5.0, 3D NAND, R/W 14K/10K MB/s, PS5 Compatible

Description

Description

Specification

• Series: ADATA XPG MARS 980 BLADE
• #Hide#Capacity Range: 960 – 1000 GB
• Capacity: 1 TB
• Form Factor: M.2 2280
• #Hide#Interface Type: PCI Express
• Interface: PCIe 5.0 x4
• Controller: SMI SM2508
• Read: “Up to 14,000 Mb/s
  PS5: Up to 6,100 Mb/s”
• Write: “Up to 10,000 Mb/s”
• Max Random 4K R/W: “1,600K / 1,650K IOPS”
• Weight/Dimensions: 12g (with heatsink)
  8g (without heatsink)
  (LxWxH) 80 x 22 x 4.5 mm (with heatsink)
  (LxWxH) 80 x 22 x 3.2 mm (without heatsink)
• Operating Temperatures: 0°C – 70°C
• Storage Temperatures: -40°C – 85°C
• Shock Resistance: 1500G/0.5ms
• MTBF: “1,600,000 hours”
• Total Bytes Written (TBW): 740TB
• Additional Features: NAND Flash: 3D NAND
  SLC Caching
  DRAM Cache Buffer
  NVMe 2.0 Support
  Compact Design – ideal for laptops and compact systems
  Built with TSMCs advanced 6nm process
  Can be installed in PS5 as an expansion drive
• Package Type: Retail
• Package Weight: 0.0120 kg
• Warranty: 5 Years or if the drive exceeds Total Bytes Written (see above)
